Four decisions, in this order
Buying a winch comes down to four choices: how much pull you need, what line goes on the drum, where the winch mounts, and how it’s wired and controlled. Get those right and almost any quality winch will serve you well. Get one wrong and even an expensive winch can leave you stuck, or hurt someone.
Short version: size it at 1.5 times your loaded weight, run synthetic rope, mount it to a bumper or plate built for the load, and wire it straight to the battery with the cables it came with.
Size it for the rig you actually drive

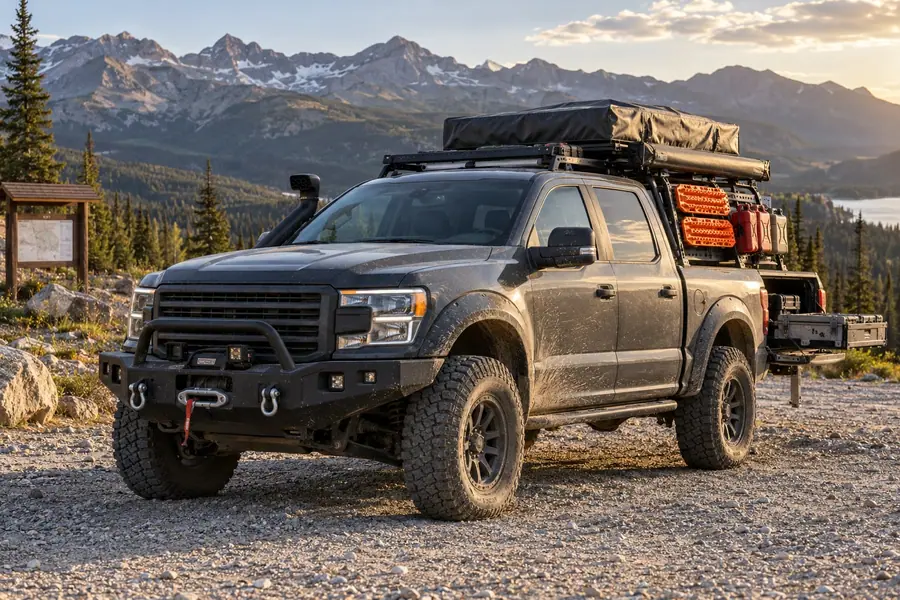

The common rule of thumb is a rated line pull of at least 1.5 times the vehicle’s gross weight. That means the rig as you drive it, with armor, gear, fuel and passengers, not the brochure curb weight. For many Jeeps and midsize SUVs that points to the 9,500 to 10,000 lb class. Full-size trucks and heavy overland builds often step up to 12,000 lb or more.
- The rating is first-layer pull. Each extra layer of line on the drum lowers the pull available, so a winch with most of its line spooled in is noticeably weaker.
- The trail adds load. Mud suction, a steep grade or a buried axle can multiply the force needed well past the vehicle’s weight.
- A snatch block doubles your pull when you need more than the winch has.
Synthetic rope, not steel cable
Plenty of winches still ship with steel cable, but it’s the one choice we steer everyone away from. A cable stores enormous energy under load, and when it fails it whips. Synthetic rope carries the same working loads, drops instead of snapping back, and is much lighter on the nose of your truck.
- Where cable is tougher: it tolerates rock and sharp edges better and needs less care.

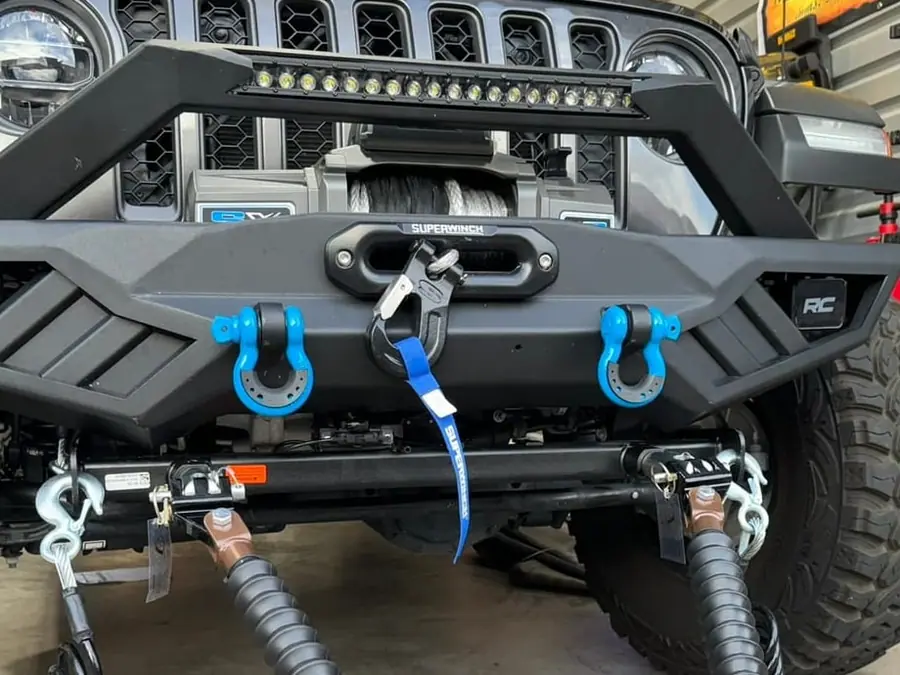

- What rope needs: an abrasion sleeve, a smooth aluminum hawse fairlead, and an occasional wash to get grit out.
- Converting from cable? Replace the fairlead too. Cable scores roller fairleads, and those burrs cut rope fibers.
Decide where it mounts
A winch is only as strong as what it’s bolted to. The mount has to carry the full pull back to the frame, so it’s part of the buying decision, not an afterthought.
- Winch-ready bumper: the strongest and most common trail setup, and it brings rated recovery points with it.
- Jeep JL and JT factory steel bumpers: some have room for a winch with the right mounting plate, so you keep the stock look.

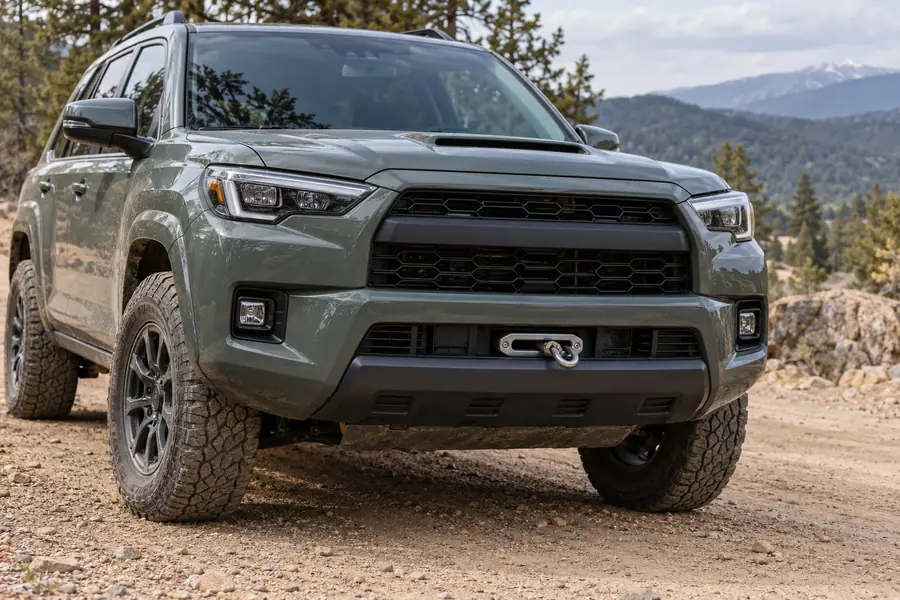

- Hidden winch plate: a frame-mounted plate that tucks the winch behind a factory-style bumper. Check fitment around sensors, airflow and the grille first.
- Receiver cradle: moves between front and rear hitches, but you need receivers at both ends and the cradle is heavy to carry.
Winch, line and bumper together add real weight up front and can sag factory springs. Uprated springs or a lift built for bumper weight keep the ride height where it belongs.
Plan the wiring and controls
Under heavy load a winch draws more current than almost anything else on the vehicle, sometimes several hundred amps. The cables in the box are sized for that, so they need short, protected runs straight to the battery, with clean terminals and grommets anywhere they pass through metal. Many installs add a circuit breaker or isolator switch so the winch isn’t live when parked.
Keep the engine running during a pull and give the motor rest breaks on long ones. If your rig has a small battery, a lot of lighting, or you pull often, a larger battery or a dual-battery setup is worth considering.
Wired remote
Always works, no batteries to charge, and the cord keeps you at a predictable distance from the line.
Wireless remote
Lets you stand where you can see both the vehicle and the anchor. Keep spare batteries, and the wired remote as a backup.
In-cab switch
Runs the winch from the driver’s seat, or disables it entirely when the truck is parked.
What we install
The winches we install come from Warn and Smittybilt. Warn is our pick for a rig that sees hard use. Smittybilt offers solid, budget-friendly winches: the XRC Gen 3 with synthetic rope is a good balance of quality and price, and the X2O fits inside the factory steel bumper on many Wrangler JLs.
Whichever you choose, we fit it with synthetic rope, mount it to a winch-ready bumper or plate, and wire it properly. Already own a winch from another brand? We can install that too.
Rules for every pull

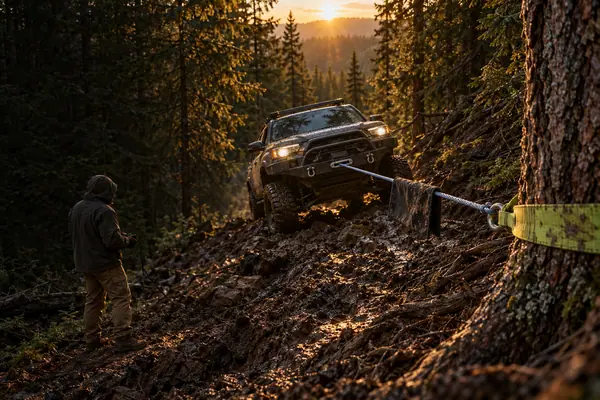

- Damp the line. Drape a line damper or heavy recovery blanket over the middle of the line so a failure drops it to the ground.
- Never step over a loaded line. Keep bystanders at least one and a half times the line length away and out of its path.
- Gloves and the hook strap. Guide the hook with its strap so your fingers stay clear of the fairlead.
- Leave at least five wraps on the drum. The line anchor alone isn’t designed to hold a load.
- Use a tree saver on trees and rated shackles on everything else.
Building out the rest of the kit? Our Recovery Gear Guide covers ropes, shackles, snatch blocks and the rest.
Winch buying FAQ
What size winch do I need?
A rated pull of at least 1.5 times your loaded weight, meaning the vehicle as you drive it with armor, gear, fuel and passengers. For many Jeeps and midsize SUVs that’s the 9,500 to 10,000 lb class; full-size trucks and heavy builds often need 12,000 lb or more.
Is synthetic rope worth it over steel cable?
Yes, and it’s the only line we recommend. It’s lighter, easier to handle and stores far less energy, so a failure drops the line instead of whipping it back. Cable is tougher against rock and sharp edges, but that trade isn’t worth the risk.
Can I put a winch on my factory bumper?
Sometimes. Some Jeep JL and JT factory steel bumpers take a winch with the right mounting plate, and many other vehicles can use a hidden winch plate. If not, a winch-ready bumper is the answer.
Will a winch drain my battery?
Under heavy load it draws hard, so run the engine during pulls and rest the motor on long ones. Rigs with lots of electrical accessories may benefit from a stronger battery setup.
Does a front winch affect my suspension?
It can. A winch and bumper add weight up front that may sag factory springs, so we check ride height and suggest springs or a lift when needed.
Which winch brands do you install?
Warn and Smittybilt. Warn is our pick for rigs that see hard use, and Smittybilt is a solid value option. We can also install a winch you already own.
Ready to add a winch? See our winch installation and bumpers pages, or call or text 970-509-5118.
