Winch installation
A winch sized for your rig, mounted to a plate or bumper that can take the load, wired to the battery with the right cable, and set up with the line and controller that suit your trails.
How much winch you need
The common rule of thumb is a rated line pull of at least 1.5 times the vehicle’s gross weight, meaning the rig as you actually drive it with armor, gear, fuel and passengers, not the brochure curb weight. For many Jeeps and midsize SUVs that points to the 9,500 to 10,000 lb class. Full-size trucks and heavy overland builds often step up to 12,000 lb or more.
Two details matter as much as the number on the box. First, the rating is measured on the first layer of line on the drum; each additional layer lowers available pull, so a winch with most of its line spooled in is noticeably weaker. Second, resistance on the trail is rarely just vehicle weight. Mud suction, a steep grade or a buried axle can multiply the force needed. A snatch block doubles pulling power at half the line speed, which is often the smarter answer than a bigger winch.
We only recommend synthetic rope
Steel cable still exists, and plenty of winches ship with it, but we do not recommend it. A cable stores enormous energy under load, and when it fails it whips. Synthetic rope carries the same working loads, drops instead of snapping back, and is lighter on the nose of your truck. Here is the honest comparison, including where cable is genuinely tougher.
| Line | Weight | If it breaks | Abrasion and heat | Upkeep | Fairlead |
|---|---|---|---|---|---|
| Synthetic rope What we install | Much lighter, floats | Stores less energy, drops sooner | Needs an abrasion sleeve; sensitive to drum heat and UV | Inspect for cuts and glazing, wash out grit | Hawse (smooth aluminum) |
| Steel cable Not recommended | Heavier on the nose | Can whip violently, which is why we steer people away from it | Tolerates rock and sharp edges | Watch for kinks and broken strands, wear gloves | Roller |
Never run synthetic rope through a roller fairlead that has already been used with steel cable. Cable scores the rollers and the burrs cut rope fibers. When converting from cable to rope, replace the fairlead at the same time.
Where the winch lives

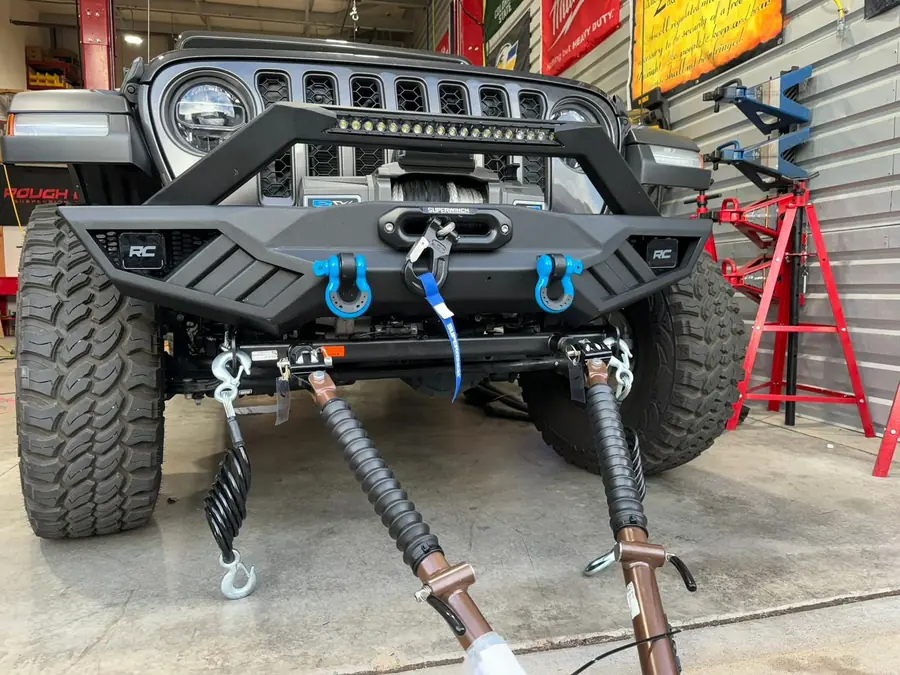

Winch-ready bumper
A steel or aluminum aftermarket bumper with an integrated winch tray and shackle mounts. The strongest and most common setup on trail rigs, and it brings rated recovery points with it.

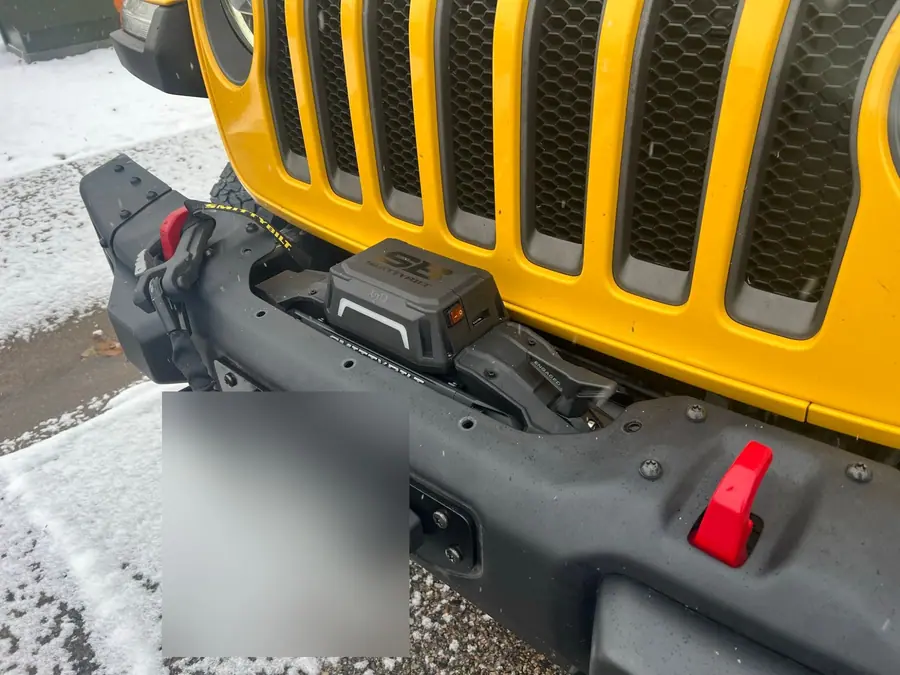

JL and JT factory steel bumpers
Some Jeep Wrangler JL and Gladiator JT factory steel bumpers are built with room for a winch. With the right mounting plate, a winch sits inside the stock bumper — you keep the factory look and skip the cost of a full bumper swap. We’ll confirm whether your trim’s bumper is one of them before quoting.
Hidden winch plate
A frame-mounted plate that tucks the winch behind or inside a factory-style bumper. Popular on Jeeps and newer trucks where owners want to keep the stock look. Check fitment against sensors, airflow and the grille before choosing.
Receiver cradle
A winch on a hitch-mount cradle that moves between the front and rear receivers. Flexible, but the rig needs receivers at both ends and the cradle is heavy to carry around.
Front-end weight
Winch, line and bumper together can load the front springs enough to sag the nose. Uprated springs or a lift kit designed for bumper weight keep the ride height where it belongs.
Wiring, battery and controllers
A winch under heavy load draws more current than almost anything else on the vehicle, sometimes several hundred amps. The cables that come in the box are sized for that, so they need short, protected runs straight to the battery, with clean terminals and grommets anywhere they pass through metal. Many installers add a circuit breaker or an isolator switch so the winch is not live when parked.
Keep the engine running during a pull so the alternator is helping, and give the motor rest breaks on long pulls so it doesn’t overheat. Rigs with weak or small batteries, heavy lighting loads or frequent long pulls may benefit from a larger battery or a dual-battery setup, which can be discussed along with the winch.
Wired remote
A plug-in handheld on a cord. Always works, no batteries to charge, and the cord keeps you at a predictable distance from the line.
Wireless remote
Lets you stand where you can see both the vehicle and the anchor. Keep spare batteries in the kit and the wired remote as a backup.
In-cab switch
Some installs add a dash switch or relay so the winch can be run from the driver’s seat, or disabled entirely when parked.
Rules for every pull
Damp the line
Drape a winch line damper or heavy recovery blanket over the middle of the line. If something fails, it pulls the line toward the ground instead of letting it fly.
Never step over it
Walk around a line under tension, never over it. Keep bystanders at a distance of at least one and a half times the line length and out of the line’s path.
Gloves and hook strap
Wear leather gloves, and guide the hook with its pull strap so your fingers stay clear of the fairlead as the line spools in.
Leave wraps on the drum
Keep at least five wraps on the drum; the line anchor alone isn’t designed to hold a load. Use a tree saver on trees and rated shackles on everything else.
Maintenance and what drives cost
Power the winch in and out every few months so seals and the motor get exercised, especially through winter. After a muddy or wet pull, unspool, rinse and let synthetic rope dry, then respool it under light tension; loose line packs down and gets crushed on the next pull. Check terminals for corrosion, the controller plug for dirt, and the line for fraying, glazed spots or kinks.
The cost of a winch install depends mostly on the winch itself, the rope or cable, the mounting solution and whether a bumper is part of the job. Vehicles with front sensors, factory fog lights or tight engine bays take longer to wire cleanly. Once parts are in hand, most installs are scheduled within about a week. Build the rest of your recovery kit in the same visit.
Winch brands we install

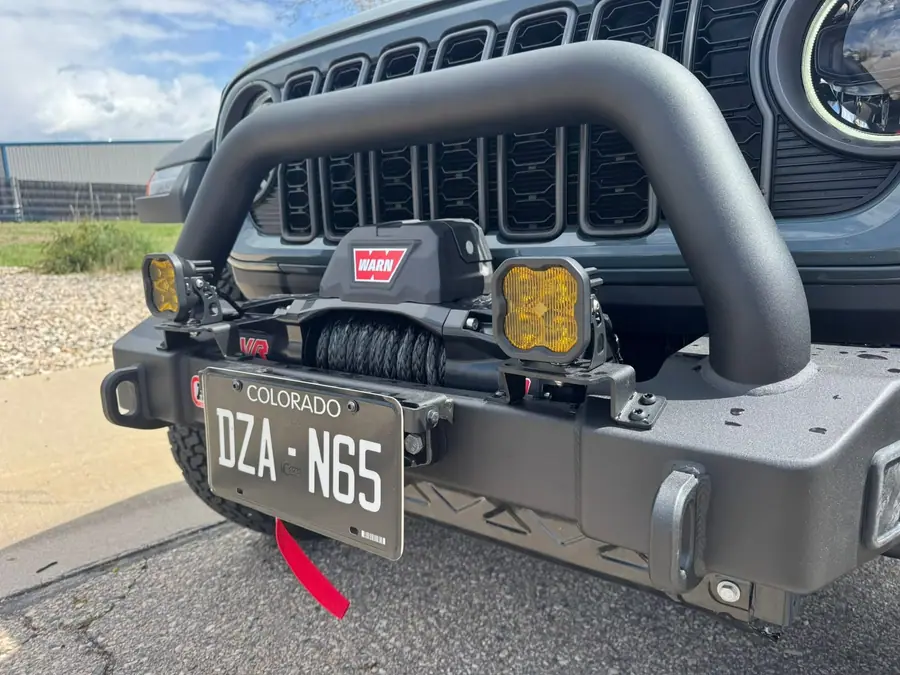

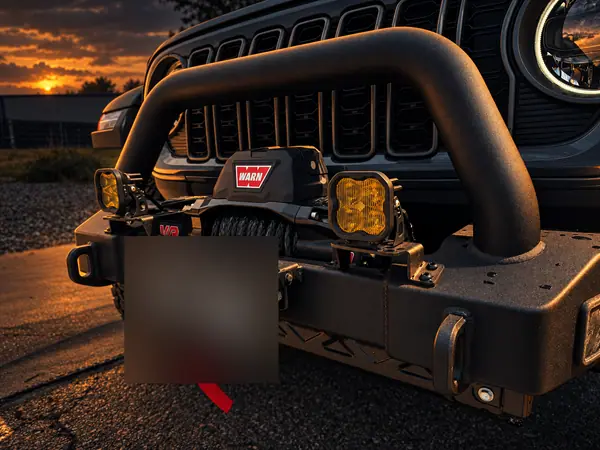

The winches we install come from Warn and Smittybilt. Warn has been building winches for decades and makes our go-to for a rig that sees hard use, like the Warn VR EVO on the Rubicon in our photos. Smittybilt offers solid, budget-friendly winches, including the X2O that fits inside the factory steel bumper on many Wrangler JLs.
Either way, we fit it with synthetic rope, mount it to a winch-ready bumper or plate, and wire it properly. If you already own a winch from another brand, we can install that too.
See it on a real build
Photos and parts lists from rigs we’ve done in the shop. More on our builds page.
- Brad’s Jeep Wrangler Rubicon: a Warn winch on an ARB bumper
- Michael’s Toyota Sequoia: a Warn 10S hidden inside the front bumper
- Sean’s Chevy Silverado: a hidden winch with pod lighting
- Evan’s Silverado 2500HD: a Hammerhead bumper and winch
- Rex’s JL Rubicon: a MetalCloak lift and winch
Winch FAQ
What winch brands do you install?
Warn and Smittybilt. Warn is our pick for rigs that see hard use, and Smittybilt is a solid value option. Both get synthetic rope and a proper mount and wiring.
What size winch do I need?
A common rule is a rated pull of at least 1.5 times the vehicle’s loaded weight. Remember that pull drops with each layer on the drum, and a snatch block can double available force.
Should I run synthetic rope or steel cable?
Synthetic, and that is the only line we recommend. It is lighter, easier to handle and stores far less energy, so a failure drops the line instead of whipping it back at whoever is standing there. Cable is tougher against rock and sharp edges and costs less to maintain, but that trade is not worth the risk to us. If your winch came with cable we will happily convert it, fairlead included.
Can you add a winch to my existing bumper?
If the bumper is winch-ready, usually yes. If not, a hidden winch plate or a winch-ready bumper is the answer, depending on the vehicle.
Will a winch drain my battery?
Under heavy load it draws hard, so run the engine during pulls and rest the motor on long ones. Rigs with lots of electrical accessories may benefit from a stronger battery setup.
Does a front winch affect my suspension?
It can. A winch and bumper add weight up front that may sag factory springs, so we check ride height and suggest springs or a lift when needed.
