Headlight, fog light & tail light upgrades
Replace dim factory reflectors with projector LED housings, swap in fog lamps that stay under the snow and dust, and finish the back of the truck with direct-fit LED tail lights. Every lamp gets aimed before the truck leaves.
Where factory front lighting falls short
Plenty of trucks and Jeeps still leave the factory with halogen bulbs in reflector housings. They meet the legal minimum, but the light is yellowish, the hot spot is short and the edges fade into the ditch. Add a lift that tips the housings, or lenses hazed by years of sun, and night driving gets tiring fast.
Halogen, HID, LED and the housing they sit in
Halogen: what most trucks started with. A glowing filament behind glass. Warm color, cheap bulbs, and a lot of energy lost as heat. Output drops as the bulb ages.
HID: bright, but fussy. High-intensity discharge lamps need a ballast, take a moment to reach full brightness and are sensitive to the housing they sit in. Dropping an HID bulb into a halogen reflector scatters light everywhere, which is why we don’t do bulb-only HID conversions.
LED: where most upgrades land now. Instant-on, low current draw, no filament to shake loose, and a long service life. The weak spot is heat, so quality housings carry real heat sinks.

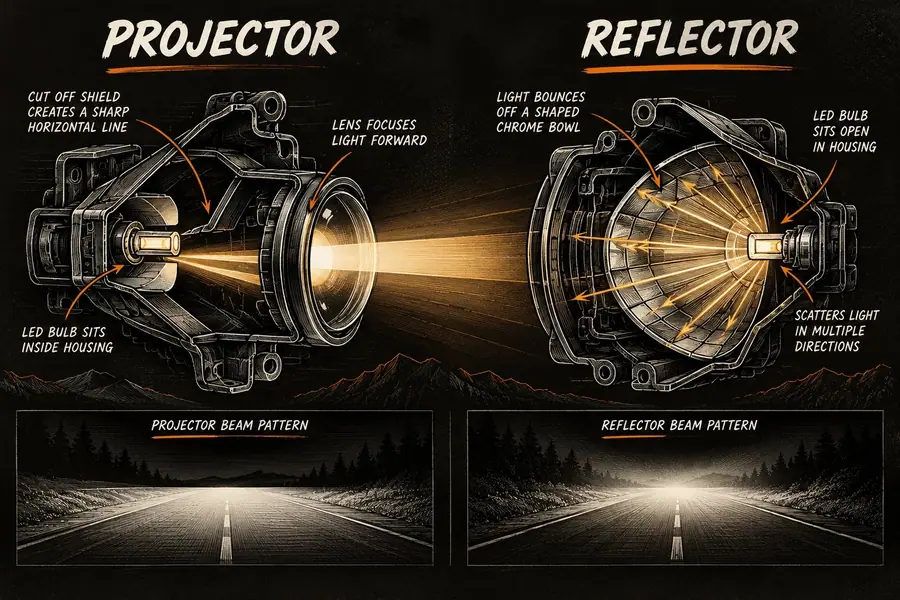

A reflector housing bounces light off a shaped chrome bowl and only behaves with the bulb it was designed for. A projector housing pushes light through a lens with a cutoff shield, which makes a sharp horizontal line: bright below it, dark above it. That line is what keeps a bright low beam from blinding oncoming drivers.

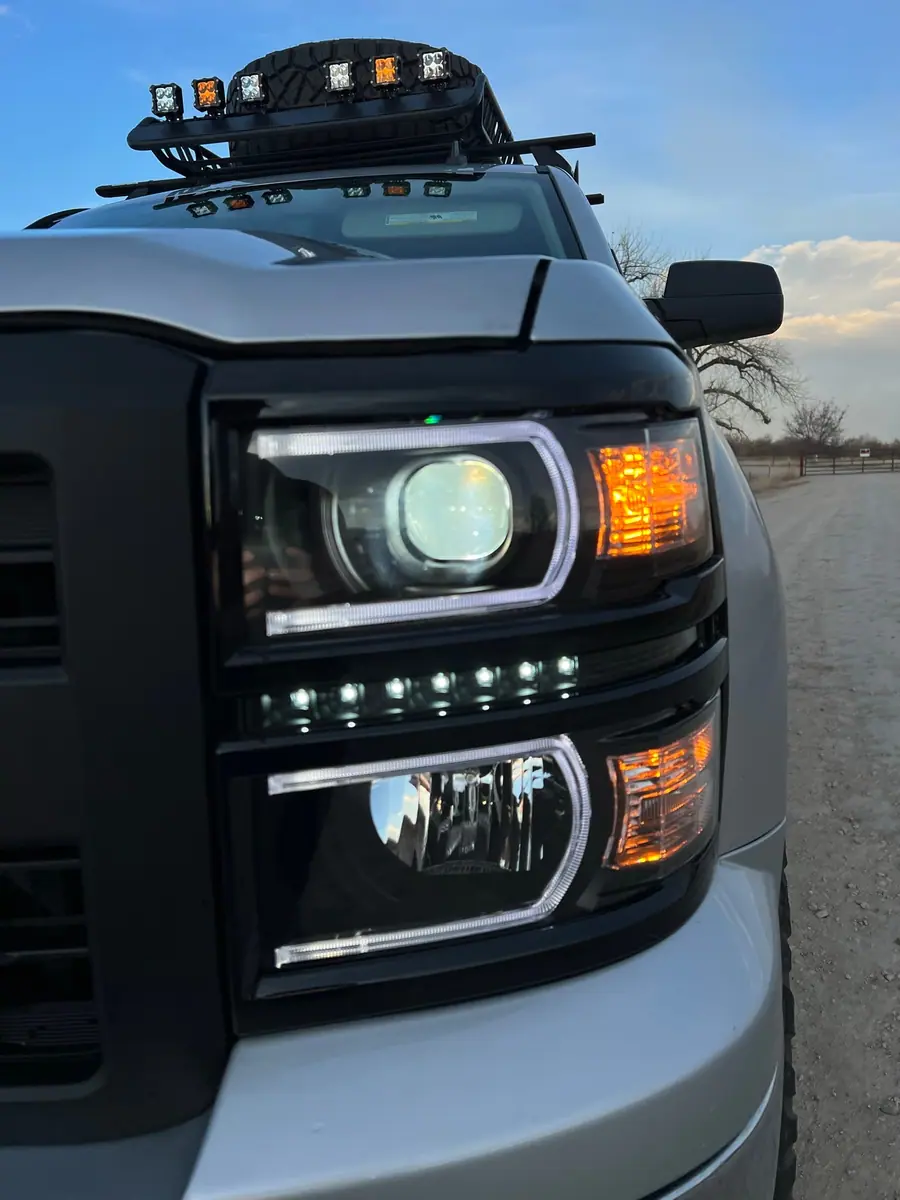

For that reason we prefer complete replacement housings built around LED projectors over putting LED bulbs into factory reflectors. Form Lighting makes projector LED headlights for several trucks we see often, including the 2016–2023 Toyota Tacoma, the 2014–2024 4Runner, the 2019–2024 Ram 1500 and the 2019–2024 Ram 1500 Classic. They don’t list headlights for Jeep Wranglers, Gladiators, the F-150 or 2019-and-later GM half-tons, so those trucks need a different route. Ask us what fits yours.
Spot, flood, driving and fog
Spot
A tight beam that reaches far. Useful on an empty two-track, useless for anything close.
Flood
A wide, short spread of light. Best for slow trails, switchbacks and work around the truck, where you need the edges lit more than the distance.
Driving / combo
A mix of reach and spread. This is the pattern most owners actually want in a bumper pair or a light bar.
SAE fog
A very wide, flat beam with a hard top cutoff. It keeps light below the snow, rain or dust hanging in the air, so it doesn’t reflect straight back at you.
Selective amber
Amber light scatters less in precipitation and dust and causes less eye fatigue. Many fog kits come in white or amber, and some have amber accents built in.
Ditch lights
Pods mounted at the base of the windshield, angled out toward the shoulders. Good for spotting wildlife before it steps into your lane on unlit roads.

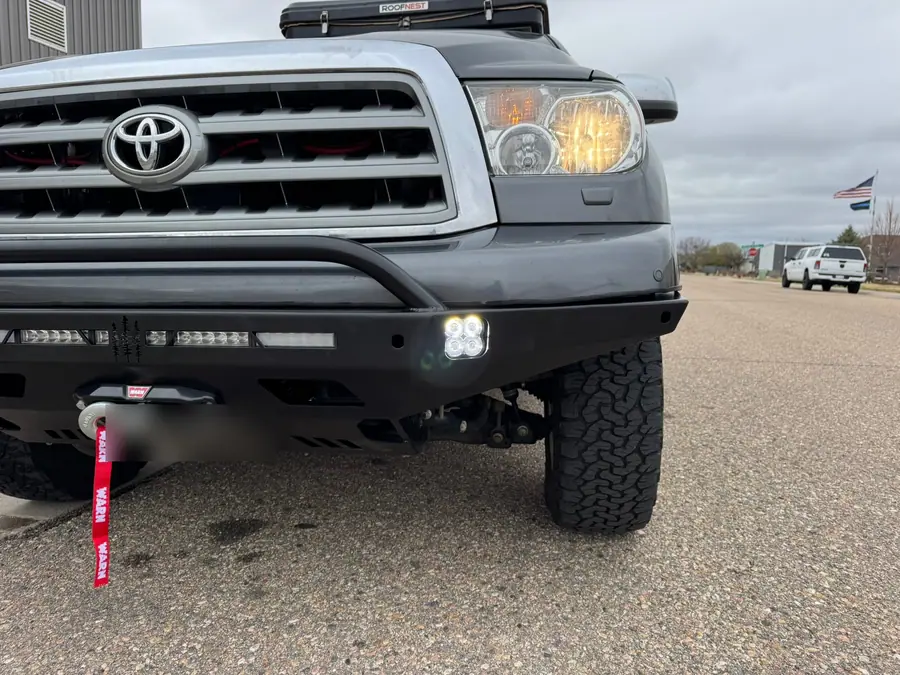

Fog upgrades that use the factory pockets

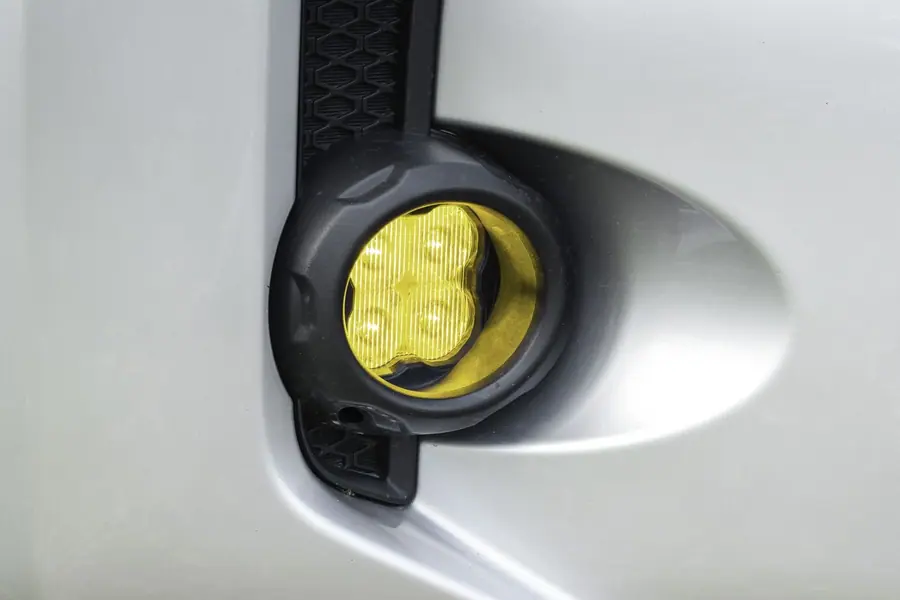

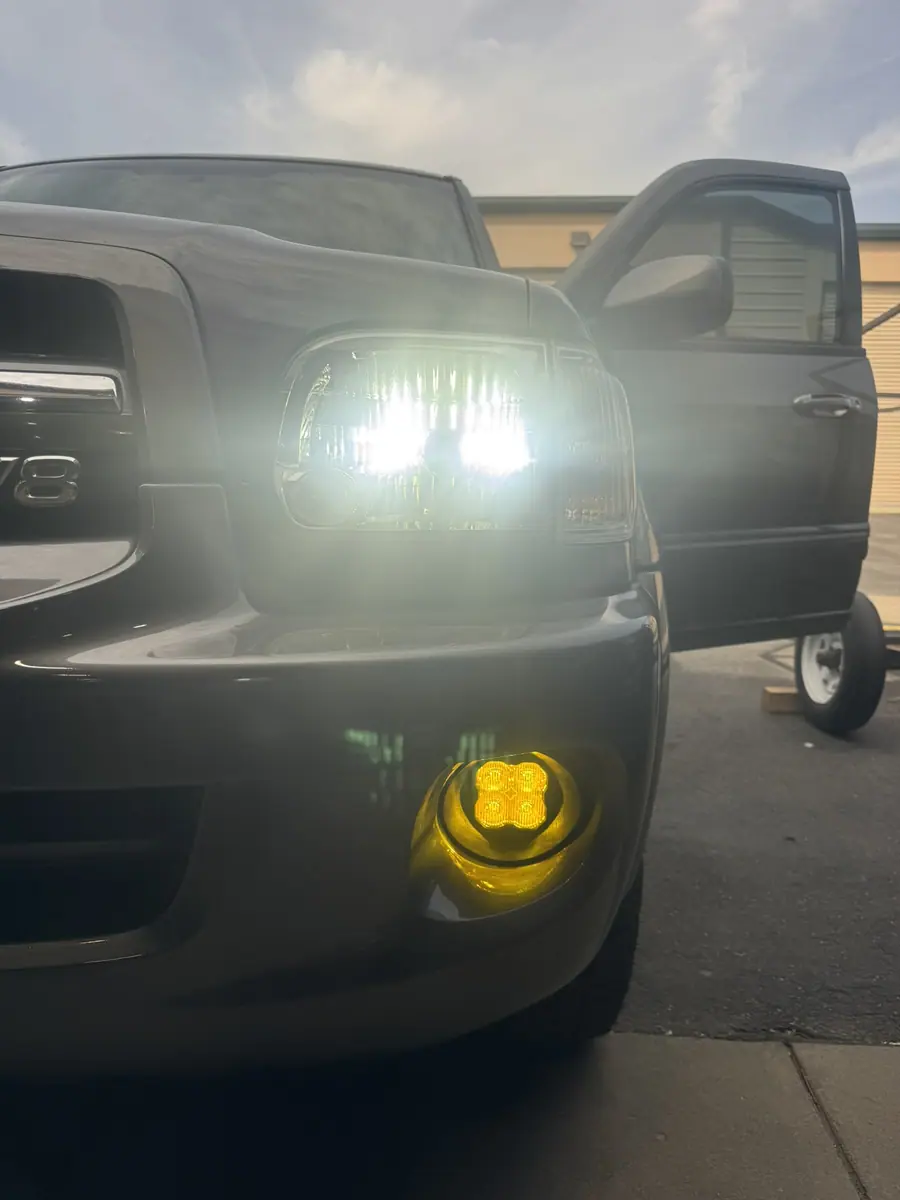

If your truck came with fog lamps, a direct-fit LED kit is an easy win. Diode Dynamics makes SS3 fog kits for the JL Wrangler, JK Wrangler, Gladiator, 2016–2023 Tacoma, 2010–2024 4Runner, 2015–2020 F-150 and 2019–2021 Silverado 1500, plus Stage Series fog pocket kits for the 2021–2023 F-150, the 2019–2024 Ram 1500 and the Bronco with a steel bumper. The Gladiator also has an Elite Series fog lamp with an amber accent.
Some of these plug straight into the factory connector; others need an adapter or added wiring, depending on the trim. Call or text with your year and trim and we will confirm what fits.
Rear lighting we install
You never see your own tail lights, which is why they get ignored until one fails or burns out on the highway. On a lifted truck they matter more, since a spare tire carrier, rear bumper or bike rack can partly hide the factory lamps. LED tail lights reach full brightness faster than a filament, so the driver behind you sees the brake light a little sooner, and there are no filaments to break on washboard roads.
Replacement tail housings
Complete LED assemblies that take the place of the factory housings, with running, brake, turn and reverse functions built in.
Sequential turn signals
Some housings sweep the turn signal outward. On certain models it is selectable, so you can run it sequential or standard.
Third brake light
An LED center high-mount stop lamp to match new tails, available for vehicles like the JL Wrangler.
Reverse lighting
Brighter backup lighting for trailer hookups, dark driveways and campsites. Diode Dynamics makes a Stage Series reverse light kit for the 2019–2024 Ram 1500.
License plate lights
A small LED swap that replaces a dim bulb you’re legally required to keep working.
Markers and fender lights
LED side markers and fender-mounted lights to finish the look on Wranglers and Gladiators.
Direct-fit housings by vehicle
Much of Form Lighting’s catalog is rear lighting. Here is what we have confirmed fits, by vehicle:
Jeep Wrangler JL
LED tail lights for 2018–2023, plus LED side markers, fender lights, license plate light and third brake light for the JL.
Jeep Gladiator
2020–2026 LED tail lights built as a direct replacement that works with blind spot detection and needs no programming tool, plus LED fender lights.
Ford Bronco
2021–2026 LED tail lights with a selectable sequential turn signal.
Tacoma and 4Runner
LED tail lights for the 2016–2023 and 2024–2026 Tacoma and the 2010–2024 4Runner.
Not every truck has a direct-fit LED housing. Form Lighting doesn’t list tail lights for the F-150, for example; they offer license plate, bed, mirror and puddle lights for it instead.
What we do on every lighting job, front or rear
Relays and fuses
Auxiliary lamps draw power straight from the battery through a fused relay. The dash switch only triggers the relay, so the switch and factory wiring never carry the lamp’s full load.
Bulb-out warnings and fast blinkers
Newer trucks watch lighting circuits for current draw, and an LED draws far less than the bulb it replaced. That can set a bulb-out warning, cause flicker or make the turn signals blink fast, front or rear. Housings designed for the vehicle avoid most of it; otherwise we add the right harness, decoder or load module, never a guess.
Mounting
We use brackets made for your vehicle or bumper, A-pillar mounts and factory tabs wherever they exist. When nothing off-the-shelf fits, we can handle light fabrication, like a simple mount or bar. Heavy fab, welding and cutting bodywork are not something we do.
Blind spot and sensors
Some rigs have radar sensors or harness connections in or near the tail light. We confirm the new housing supports them before ordering, so you don’t lose a safety feature for a better look.
Aiming
Headlights and fogs get aimed on level ground after the install, and again after a lift. C.R.S. 42-4-216 expects a low beam to show objects at 100 feet without glare and a high beam to reach 350 feet.
Seal and function test
Gaskets seated, connectors locked, and every function checked with a helper at the pedal: running, brake, both turns, hazards and reverse.
Keeping it street legal
C.R.S. 42-4-205 requires at least two headlamps with their centers between 24 and 54 inches above the ground, so a tall lift on big tires is worth measuring. Fog lamps under 42-4-212 mount between 12 and 30 inches high, and you’re allowed two spot lamps, two auxiliary passing lamps and two auxiliary driving lamps. No more than four front lamps over 300 candlepower may be lit together on a highway (42-4-219). Pods and light bars meant for trail use should be off on public roads, which is why they get their own switch.
At the back, street tail lights should carry DOT and SAE markings for the functions they’re built for. Smoked lenses and bargain housings often skip them, so we stick with marked housings and avoid tint films or sprays that dim the output.
What changes the size of the job
A plug-in fog kit or a Wrangler tail light swap is a short visit. Headlight housings take longer, since many trucks need the bumper cover or grille removed to reach them, and tail lights that hide behind a tailgate or trim take a little more. Ditch lights routed through the firewall, a reverse light kit or any new circuit adds the most time. Pairing lighting with a bumper or bed rack install is efficient, since that part of the truck is already apart.
Most jobs get into the bay within about a week of parts arriving. We’re open Monday through Friday, 9 to 4, with early drop-off and late pickup available.
Lighting brands we carry
Our go-to lighting brands are Diode Dynamics, Form Lighting, Oracle Lighting and Combat Off Road. Diode Dynamics covers the front of the truck with SS3 and Stage Series fog kits, pods and reverse lights. Form Lighting builds direct-fit LED headlights and tail lights for the trucks and Jeeps we see most, with DOT and SAE markings for road use. Oracle Lighting makes LED headlights, tail lights and accent lighting for Jeeps, trucks and Broncos, and Combat Off Road is known for its Tail Gunner LED tail lights for the Wrangler, Gladiator and Bronco.
Diode Dynamics and Form Lighting are direct dealer accounts, so we can check fitment with the manufacturer and get parts in quickly. If your truck isn’t covered by either one, we can source from more than 130 other brands through our distributors.
Headlight, fog light and tail light FAQ
Can I just put LED bulbs in my factory headlights?
It can work in some projector housings, but in a reflector housing an LED bulb rarely puts light where the reflector expects it, and the beam scatters into oncoming traffic. A complete housing built for LEDs is the better fix.
Should my fog lights be white or amber?
For snow, rain and dust, amber is easier to see through and less tiring on the eyes. White looks cleaner and matches LED headlights. Plenty of owners pick amber for the fogs and keep white everywhere else.
Will LED lights throw a dash error or fast blinkers?
They can on vehicles that monitor lamp current, front or rear. Housings designed for your truck usually avoid it. If a warning, flicker or fast turn signal shows up, we fix it with the right harness, decoder or load module before you pick up.
Does a lift affect my headlights?
Yes. Raising the front tips the beam up and puts more glare in oncoming drivers’ eyes. Headlights need to be re-aimed after any lift or level, and the lamp center has to stay within Colorado’s 24 to 54 inch range.
Do I need to program anything after the swap?
For many direct-fit housings, no. The Form Lighting Gladiator tail lights, for example, are listed as needing no programming. Some vehicles and features do need a setting changed, and we sort that out before quoting.
Will the new tail lights work with my blind spot monitoring?
Only if the housing is designed to. We check compatibility for your exact year and trim before ordering.
Can you replace a single cracked tail light?
Yes, if the replacement matches the other side. Mixing an LED housing on one side with a factory bulb on the other looks odd and lights unevenly, so most owners replace the pair.
