Off-road wheels
Diameter, width, offset and load rating chosen for your axle, brakes and tire. Mounted, balanced and torqued on the vehicle before you drive away.
More than a look
Two wheels with the same diameter and the same finish can behave completely differently on a truck. One tucks the tire neatly under the fender. The other pushes it out far enough to rub the bumper at full lock, load the wheel bearings harder and spray the side of the vehicle with gravel.
The numbers that decide this are printed on every wheel, and they are the first thing we check.
The measurements that matter
Diameter
A 17-inch wheel is the sweet spot for many off-road builds because it leaves plenty of sidewall to flex when aired down and still clears most factory brakes. Some heavy-duty trucks and newer platforms with large brake calipers need 18s or 20s.
Width
Each tire size has an approved range of rim widths. An 8.5- to 9-inch wheel suits many 33- to 35-inch tires, while a wider rim squares the sidewall off and pushes the tire outward. Too narrow pinches the tread into a rounded crown; too wide leaves the bead exposed on rock.
Offset
Offset is the distance in millimeters from the wheel’s centerline to its mounting face. Positive offset tucks the wheel in toward the frame, zero centers it and negative offset pushes it out.
Backspacing
Backspacing measures from the mounting face to the inner lip, in inches. It tells you how close the inside of the tire gets to the control arm, leaf spring or sway bar. Less backspacing moves the tire outward, gaining inner clearance and steering room while giving up some fender clearance.

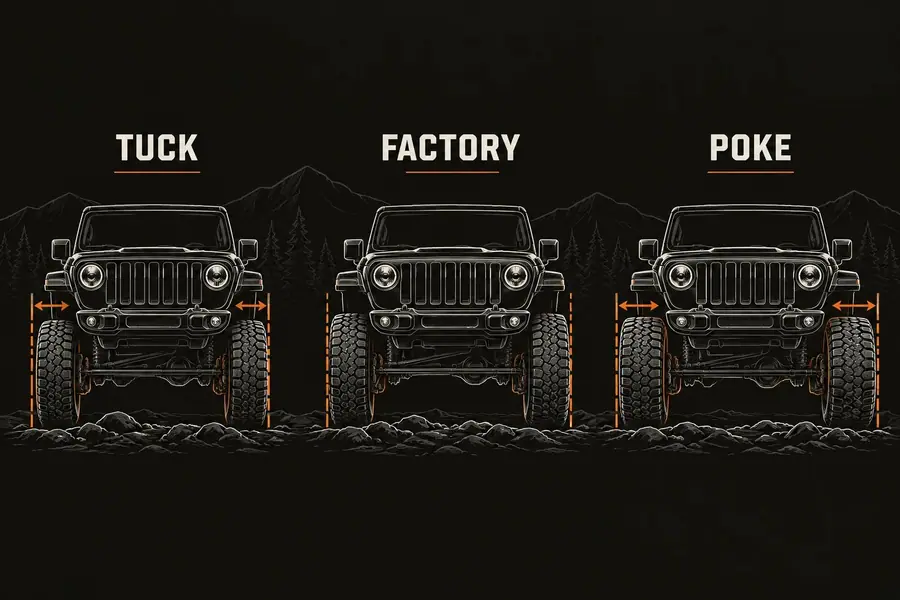

Poke or tuck
“Poke” is how far the tire sticks past the fender. A little poke gives a wider track, a planted feel and room for bigger tires to turn without hitting the frame or control arms. Too much of it increases scrub radius, so the steering kicks back over ruts, the tires throw mud and rocks up the side of the body, and bearings and ball joints carry extra leverage.
A tucked setup keeps the factory steering feel and a cleaner body, but it limits how wide and tall you can go before the inside of the tire hits something. For most daily-driven Jeeps and trucks we aim for a modest, even stance. If you want an aggressive look, we will show you what it costs in steering and wear before you commit. Colorado does not require mud flaps on passenger vehicles or trucks weighing 10,000 lb or less empty (C.R.S. 42-4-1407.5), though many owners add them anyway to keep gravel off the paint.
Fitment details people skip
Hub-centric or lug-centric
A hub-centric wheel has a center bore machined to your hub, so the hub carries the weight and centers the wheel. Many aftermarket wheels use a larger bore to fit several vehicles and center on the lug nuts instead. Both work when installed properly.
Lug nut seat type
Lug nuts must match the wheel’s seat: conical, ball or flat mag with a washer. The wrong seat looks tight but only touches a thin ring of metal and can loosen. Factory nuts rarely suit aftermarket wheels, so new hardware is often part of the package.
Load rating
Every wheel carries a maximum load per corner. A lightweight wheel designed for a small SUV may not be rated for a three-quarter-ton truck or a fully armored overland rig. We check the rating against the vehicle’s axle ratings, not just its curb weight.
Pressure sensors
New wheels need sensors, either moved over from the old wheels or new ones matched to the vehicle. Some trucks and Jeeps relearn them on their own after a short drive; others need a scan tool. We don’t program vehicles, so ask us which case applies before you order.
Spare fitment
A matching fifth wheel keeps the spare usable and lets you rotate all five. Check that it clears the tailgate, rear camera or underbody carrier; bigger spares often call for a relocated or reinforced carrier.
Lug torque
Lugs go on in a star pattern and get torqued to spec with a calibrated wrench, not an impact gun. New aluminum wheels seat in, so we recommend a quick retorque after the first 50 to 100 miles.

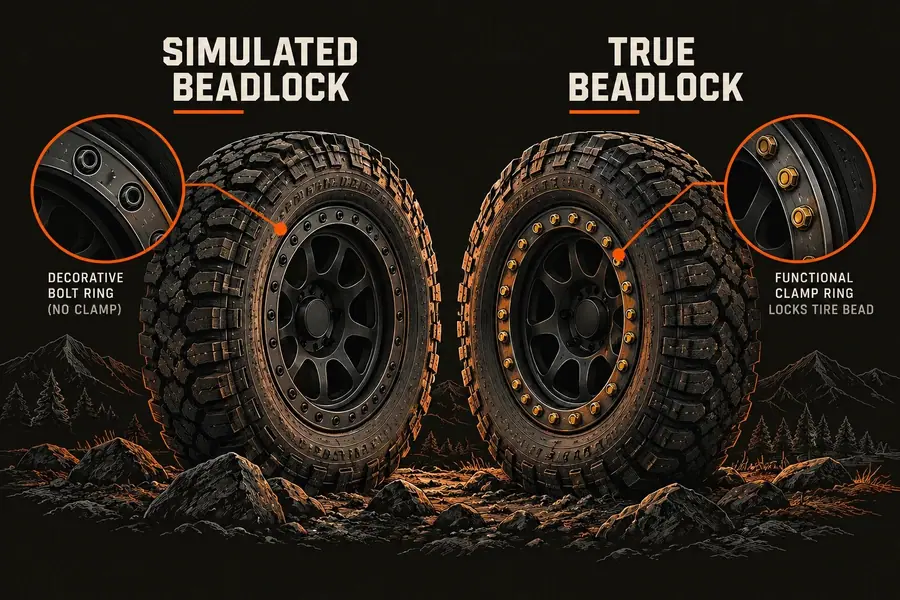

True beadlocks vs simulated
At trail pressures a tire can slip on the rim or peel its bead off entirely. A true beadlock clamps the outer bead between the wheel and a bolted ring, so the tire stays put even in single digits. That grip comes with work: the ring bolts need regular checks, balancing is harder, and many true beadlock wheels are sold for off-highway use only.

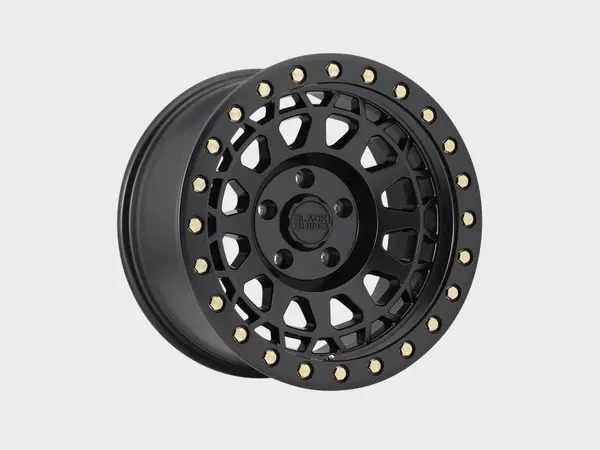

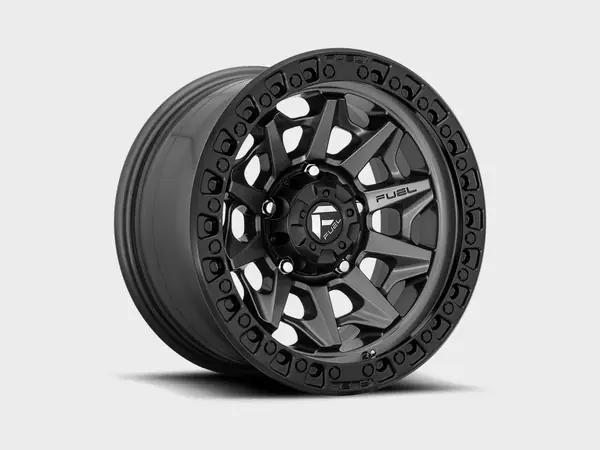

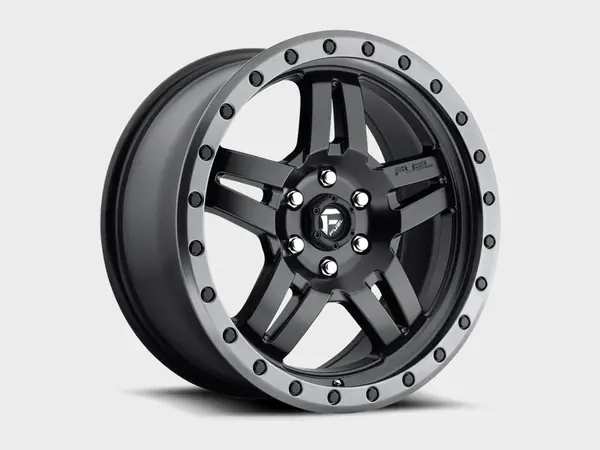

Simulated beadlocks have the bolt-ring look without the clamp, and they are ordinary street wheels underneath. Some factory and aftermarket wheels are “beadlock-capable,” meaning a real ring can be added later. For drivers who air down to the high teens on weekend trails, a quality standard wheel does the job. We don’t assemble true beadlock rings, so we will talk through the trade-offs before recommending one.
Wheel brands we carry

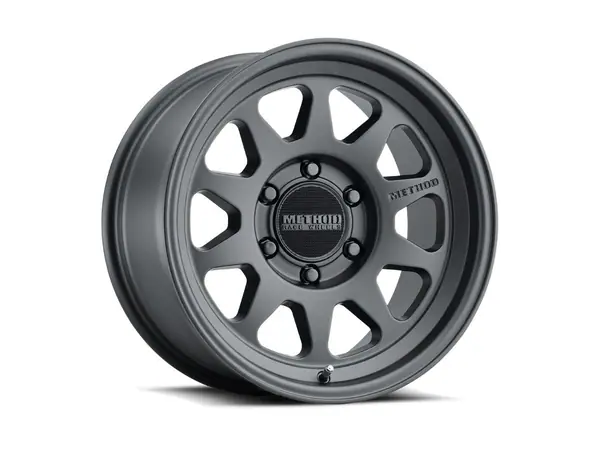

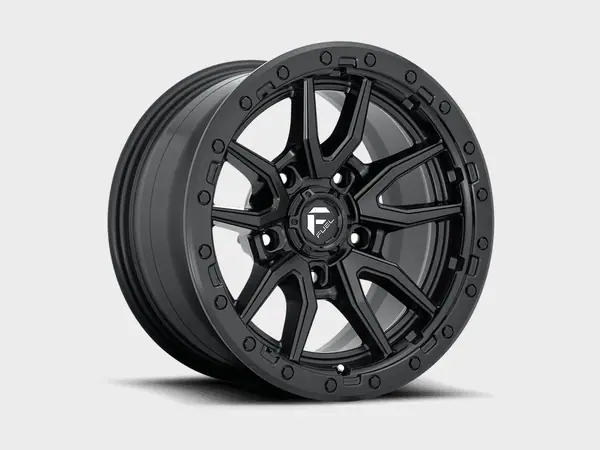

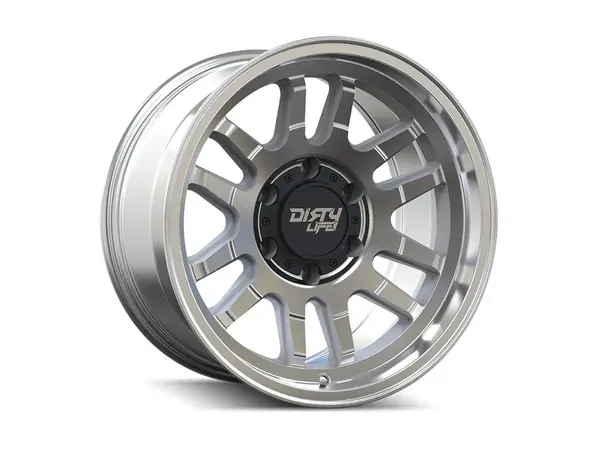

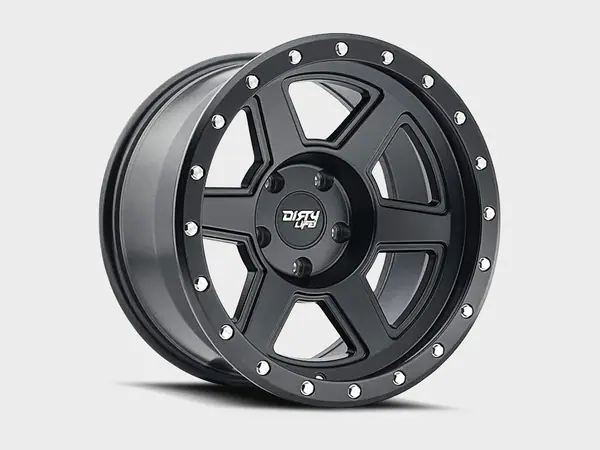

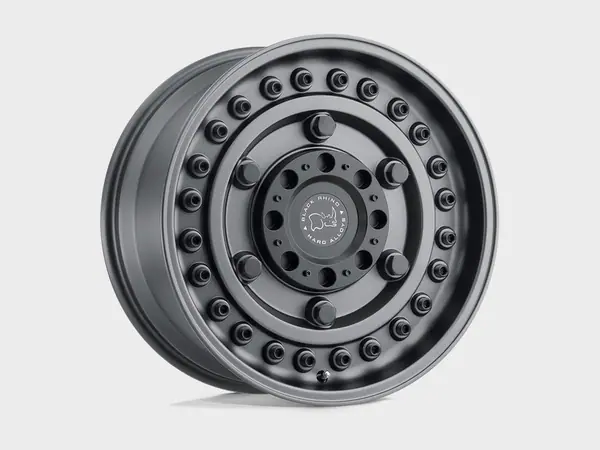

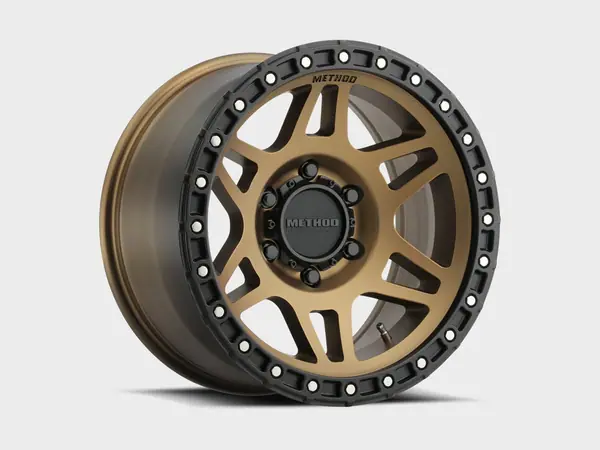

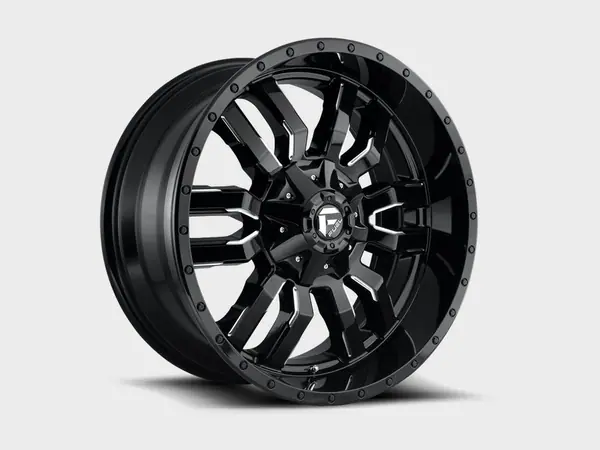

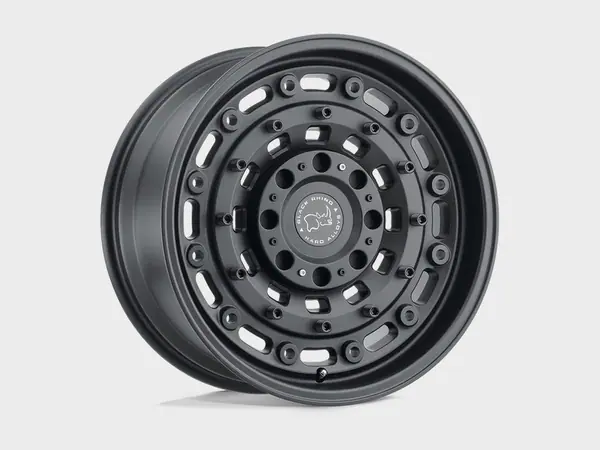

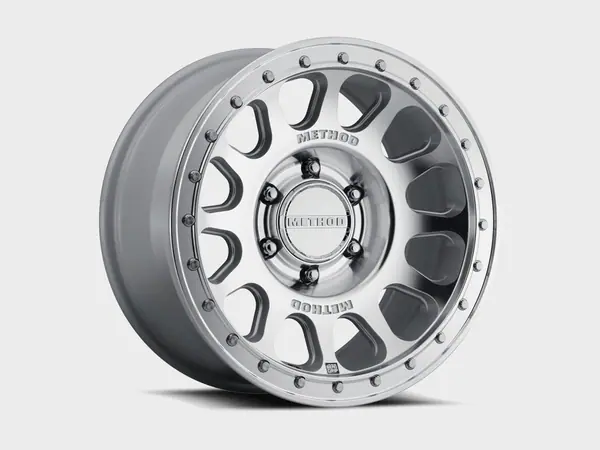

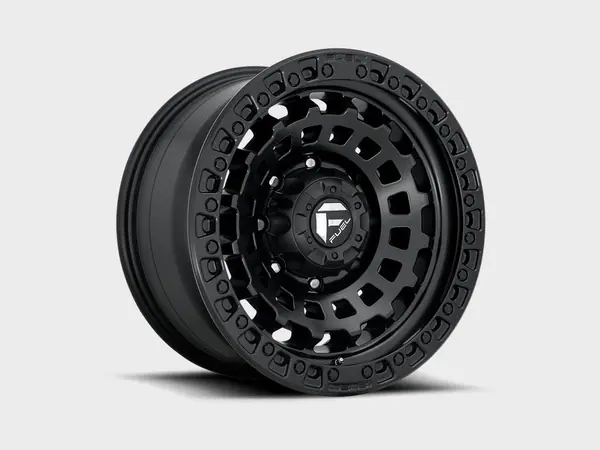

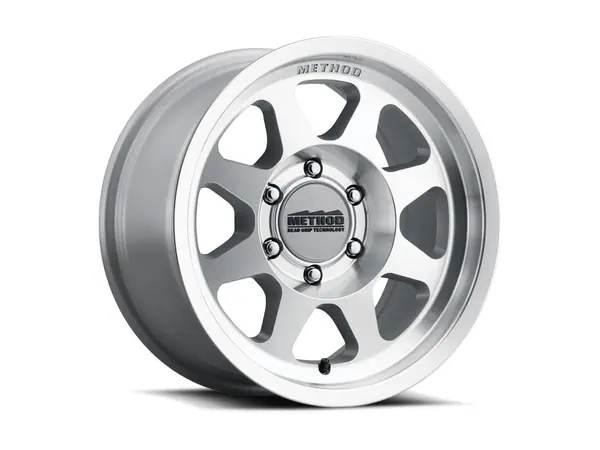

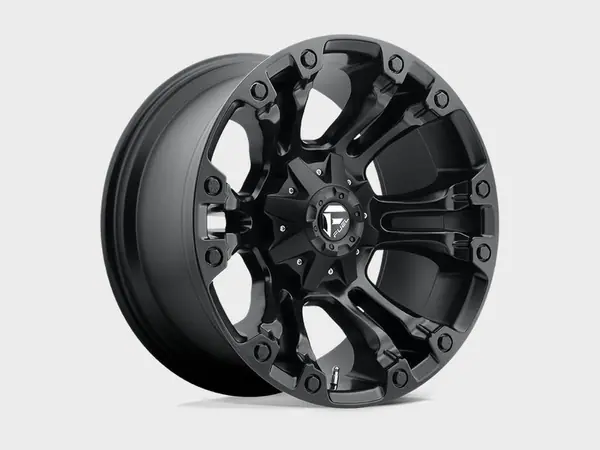

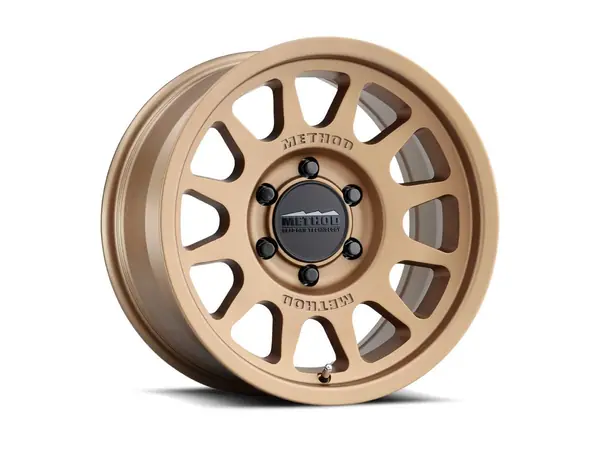

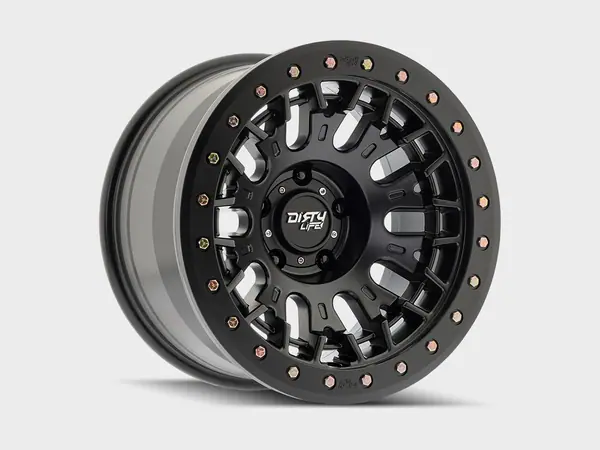

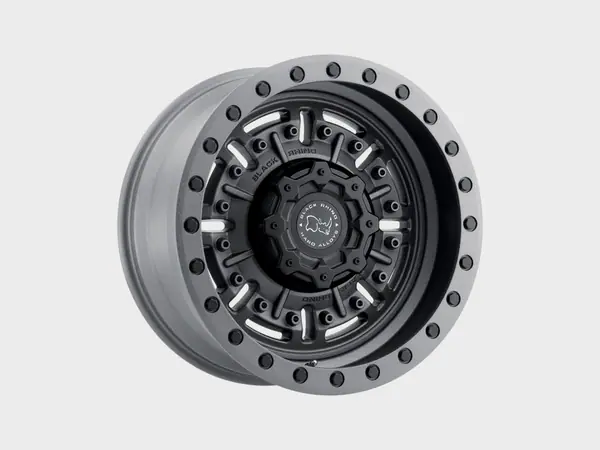

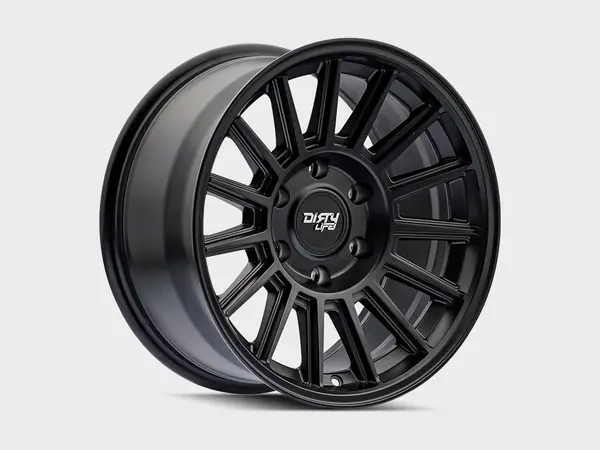

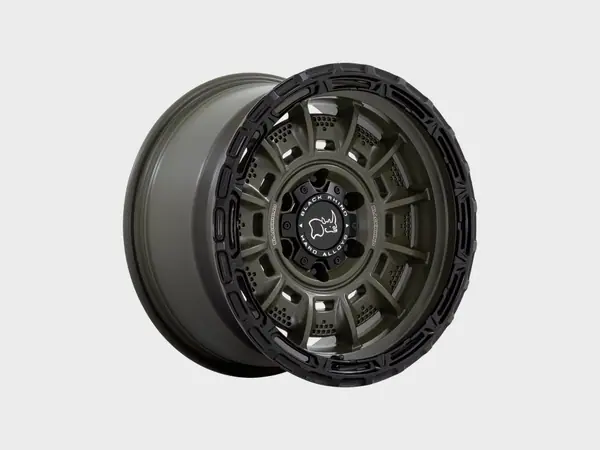

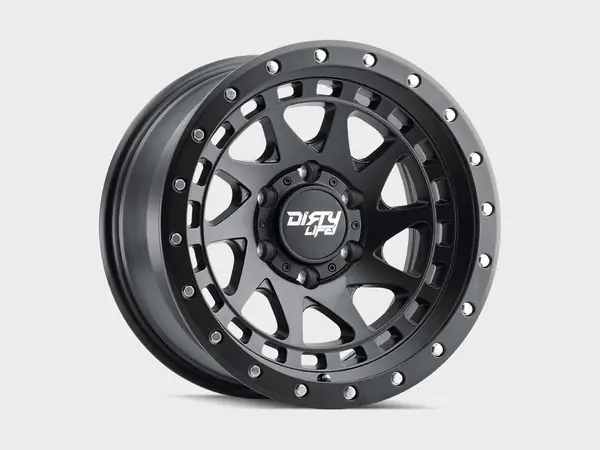

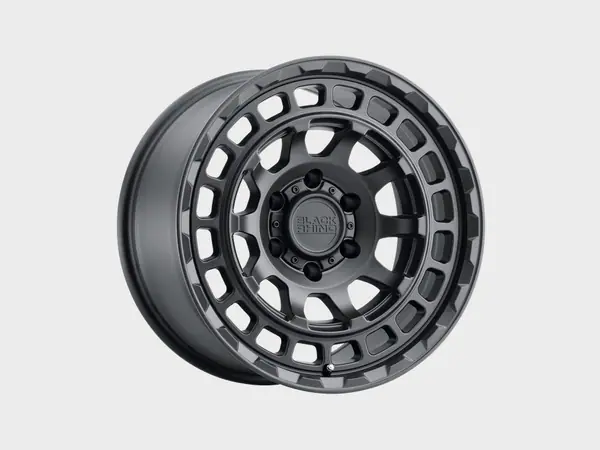

Our wheels come from Method Race Wheels, ICON, Fuel Off-Road, Dirty Life and Black Rhino. Between them there is a style, size and offset for nearly every Jeep, Toyota, Bronco and truck we see, from race-inspired designs and beadlock-capable wheels to heavy-duty fitments for three-quarter-ton trucks, at a range of price points. Tap a logo to see each brand’s popular models.
Wheel material and construction make the biggest difference: cast aluminum, flow-formed and forged wheels, and steel wheels all sit at different price points. After that come the lug hardware, pressure sensors, whether a spare is included, and whether the new setup needs a lift, level or suspension work to clear. Parts availability sets the timeline, and most jobs get into the bay within about a week of everything arriving.

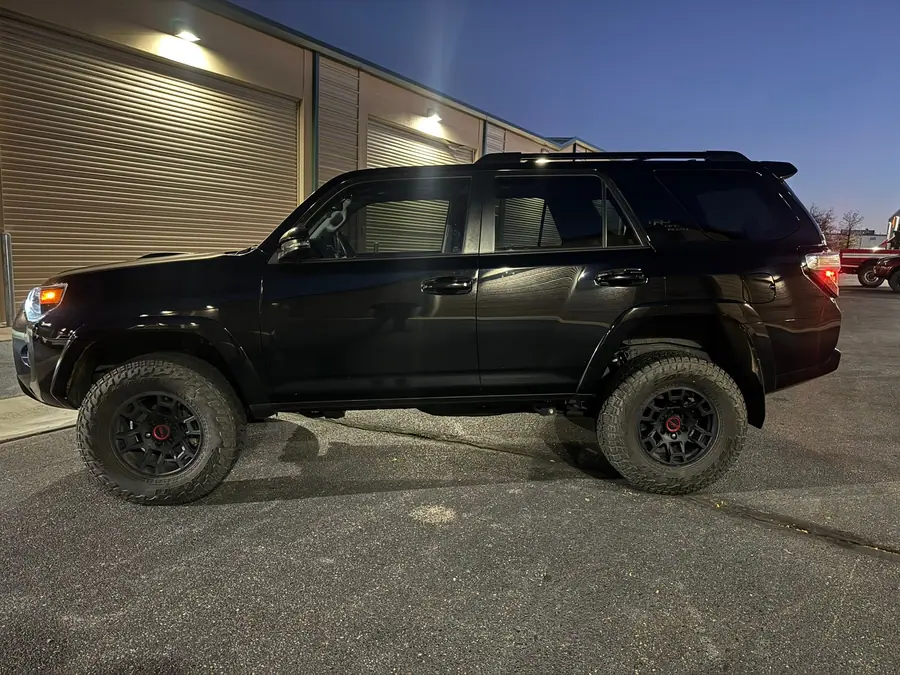

Everything happens in one stop: the tires are mounted and balanced, the wheels are torqued on, and the alignment is set before pickup. We recommend rechecking lug torque after the first 50 to 100 miles on new aluminum wheels. Pair this page with our tire guide, or see what fits a Wrangler JL, Bronco or 4Runner.
Wheel FAQ
What wheel brands do you carry?
Method Race Wheels, ICON, Fuel Off-Road, Dirty Life and Black Rhino. Tell us the vehicle, tire size and look you want, and we will narrow it down to the wheels that actually fit.
What backspacing do I need?
It depends on your tire width, ride height, steering stops and how much poke you want. Many Wrangler builds on 35- to 37-inch tires use about 4.5 inches, but we confirm it against your exact vehicle rather than guessing from a chart.
Can I keep my factory wheels with a lift?
Sometimes. Factory offsets often tuck a larger tire too close to suspension parts, and some lift kits change sway bar or control arm clearance. We check before you plan around the stock wheels.
Do I need true beadlocks?
Only if you regularly run very low pressures on hard trails and accept the maintenance. Most daily-driven rigs are better served by a strong standard wheel, and we don’t assemble true beadlock rings.
Will my TPMS sensors work on new wheels?
Usually they can be moved over, or new sensors can be installed. Some vehicles need a relearn with a scan tool, which we don’t perform, so ask which applies to yours.
